Video Wall Controller

Video Wall Controller

Category:

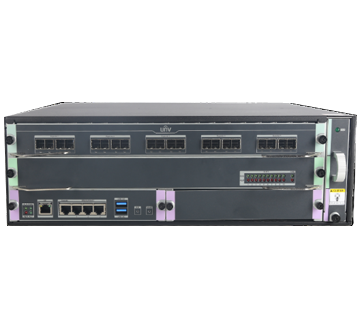

DMC9000-3U

Video Wall Controller
3U
447mm×132mm×471mm(17.4″×5.2″×18.5″)
14.1kg(31.1lb)
＜350W
<60W
10
1×Ethernet port, 1×Console control, 3×RS232/RS485, 2×USB, 1×Reset,1×SWAP
Signal Input Cards 4×HDMI, 8×HDMI, 2×HDMI(4K), 4×DVI-D
4×HDMI Input Card XGA:1024×768@60HZ, 720P:1280×720@50HZ, 720P:1280×720@60HZ, SXGA:1280×1024@60HZ, WXGA+:1440×900@60HZ, UXGA:1600×1200@60HZ, 1080P:1920×1080@50HZ, 1080P:1920×1080@60HZ, WUXGA:1920×1200@60HZ
8×HDMI Input Card XGA:1024×768@60HZ, 720P:1280×720@50HZ, 720P:1280×720@60HZ, SXGA:1280×1024@60HZ, WXGA+:1440×900@60HZ, UXGA:1600×1200@60HZ, 1080P:1920×1080@50HZ, 1080P:1920×1080@60HZ, WUXGA:1920×1200@60HZ
2×HDMI(4K) Input Card XGA:1024×768@60HZ, 720P:1280×720@50HZ, 720P:1280×720@60HZ, SXGA:1280×1024@60HZ, WXGA+:1440×900@60HZ, UXGA:1600×1200@60HZ, 1080P:1920×1080@50HZ, 1080P:1920×1080@60HZ, WUXGA:1920×1200@60HZ, 4K: 3840×2160@30HZ
4×DVI-D Input Card XGA:1024×768@60HZ, 720P:1280×720@50HZ, 720P:1280×720@60HZ, SXGA:1280×1024@60HZ, WXGA+:1440×900@60HZ, UXGA:1600×1200@60HZ, 1080P:1920×1080@50HZ, 1080P:1920×1080@60HZ, WUXGA:1920×1200@60HZ
Signal Output Cards 4×HDMI, 8×HDMI, 2×HDMI(4K), 4×DVI-D
4×HDMI Output Card XGA:1024×768@60HZ, 720P:1280×720@50HZ, 720P:1280×720@60HZ, SXGA:1280×1024@60HZ, WXGA+:1440×900@60HZ, UXGA:1600×1200@60HZ, 1080P:1920×1080@50HZ, 1080P:1920×1080@60HZ, WUXGA:1920×1200@60HZ
8×HDMI Output Card XGA:1024×768@60HZ, 720P:1280×720@50HZ, 720P:1280×720@60HZ, SXGA:1280×1024@60HZ, WXGA+:1440×900@60HZ, UXGA:1600×1200@60HZ, 1080P:1920×1080@50HZ, 1080P:1920×1080@60HZ, WUXGA:1920×1200@60HZ
2×HDMI(4K) Output Card XGA:1024×768@60HZ, 720P:1280×720@50HZ, 720P:1280×720@60HZ, SXGA:1280×1024@60HZ, WXGA+:1440×900@60HZ, UXGA:1600×1200@60HZ, 1080P:1920×1080@50HZ, 1080P:1920×1080@60HZ, WUXGA:1920×1200@60HZ, 4K: 3840×2160@30HZ
4×DVI-D Output Card XGA:1024×768@60HZ, 720P:1280×720@50HZ, 720P:1280×720@60HZ, SXGA:1280×1024@60HZ, WXGA+:1440×900@60HZ, UXGA:1600×1200@60HZ, 1080P:1920×1080@50HZ, 1080P:1920×1080@60HZ, WUXGA:1920×1200@60HZ
