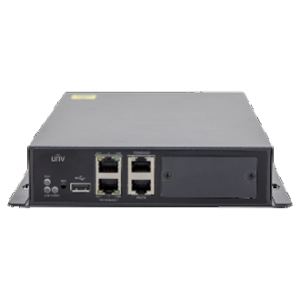

10-Channel High Definition Video Decoder – DC5510-E-V2
| Product | 10-Channel High Definition Video Decoder |
| Input Channel | 4×HDMI |
| HDMI Input | 1922×1080@60HZ, 1920×1080@50HZ, 1600×1200@60HZ, 1440×900@60HZ, 1280×1024@60HZ, 1280×720@60HZ, 1280×720@50HZ, 1024×768@60HZ |
| Output Channel | 10×HDMI |
| HDMI Output | 3842×2160@60HZ, 3840×2160@30HZ, 1920×1080@60HZ, 1600×1200@60HZ, 1440×900@60HZ, 1280×1024@60HZ, 1280×720@60HZ, 1024×768@60HZ |
| Video Stream Format | H.265, H.264, MPEG4, MPEG2, MJPEG |
| Decoding Capability | 10×3840×2160@30/40×1080P@30/90×720P@30/160×D1 |
| Display Split | 1/2/3/4/6/7/9/18 |
| Serial Interface | 1×RS-232, 1×RS487 |
| Network Interface | 3×RJ-45, 10M/100M/1000M adaptive Ethernet Interfaces |
| Power Supply | 102V ~ 240V AC; 50Hz/60Hz |
| Consumption | 31W |
| Work Condition | -8～+55(14°F~131°F)/10% ~ 90%RH |
| Weight | 3.37kg(7.4lb) |
| Dimensions(W×H×D) | 442mm×44mm×339mm(17.3″×1.7″×13.3″) |
